Description

Parameter	Value
Handpiece Type	High Speed Handpiece Cartridge / Turbine
Bur Type	FG (Friction Grip, Ø1.6mm)
Bearing Type	Ceramic Ball Bearings
Chuck Type	Push Button
Head Size	Standard (Ø11.6mm) / Oversize (Ø12.5mm)
Max Speed	350,000 – 420,000 rpm
Sterilization	135°C Autoclavable
Warranty	6 months
Usage	Dental Health Materials, Clinic & Hospital
Suitable For	Adult, All Ages

Product Feature and Application

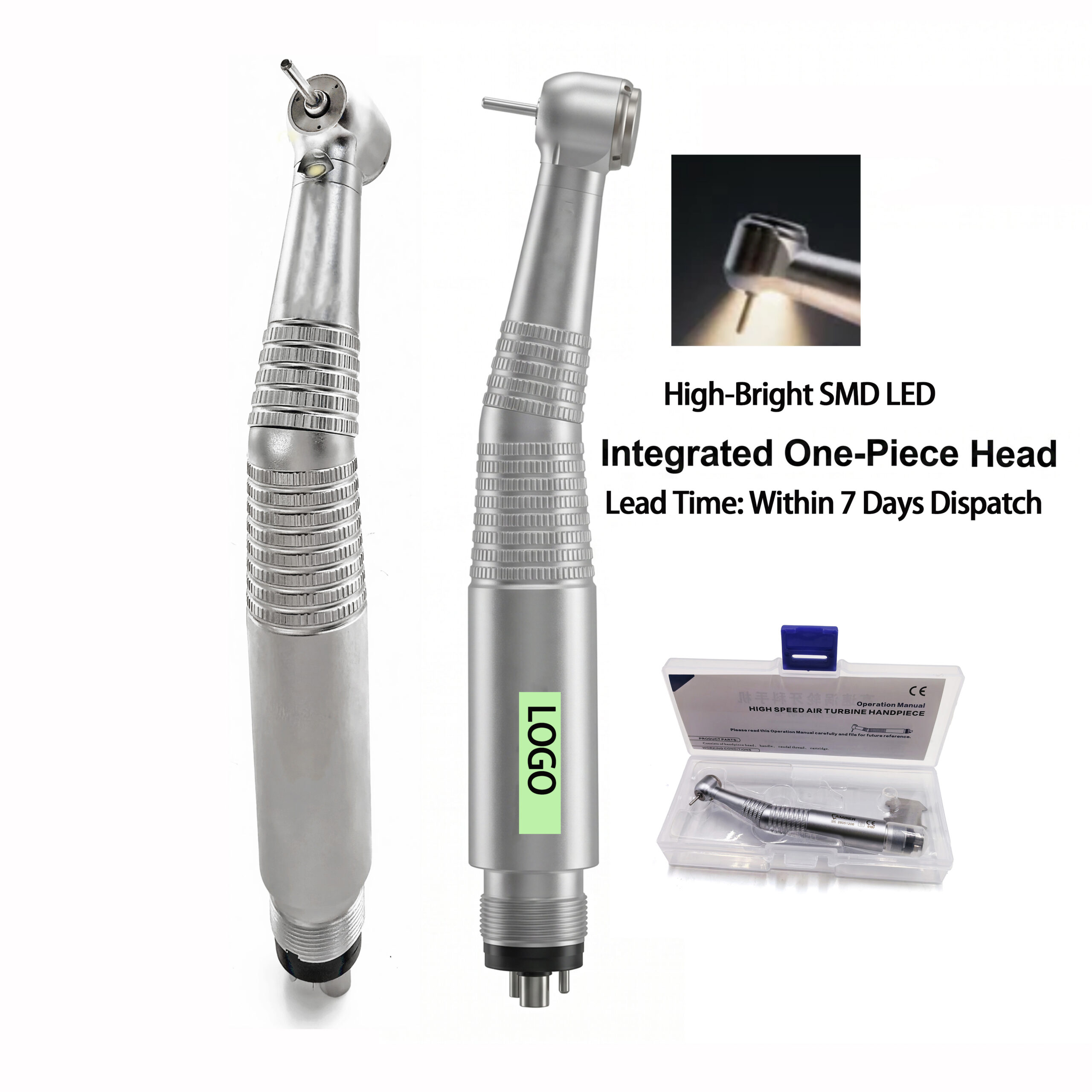

•  SMD LED Technology: Built-in shadowless SMD LED provides natural daylight quality  with 10,000 hours lifespan and stable brightness — no fiber optic connection required.

• Ultra-High Rotation — 420,000 RPM: Delivers exceptional cutting efficiency with 0.22-0.25MPa air pressure, significantly reducing chair time while ensuring clinical precision.

• Integrated One-Piece CNC Machined Head: Precision one-piece forming eliminates internal gaps and seams, preventing debris, blood, and bacteria from entering the turbine — fully compliant with strict dental infection control standards.

• 3 Way Water Spray Cooling System: Quad-port spray design ensures maximum cooling and debris clearance, protecting pulp from thermal injury and maintaining a clear operating field.

• 135°C Fully Autoclavable: Engineered with anti-corrosion fiber glass materials, withstands repeated high-temperature sterilization cycles (up to 135°C) without structural degradation.

• Low-Noise Acoustic Engineering: Advanced turbine balancing maintains operational noise ≤68dB, enhancing patient comfort and reducing anxiety during procedures.

• Universal Push-Button Chuck: Compatible with all standard Φ1.58-1.6mm FG burs; push-button mechanism enables rapid, one-handed bur changes with 20-45N chucking force.

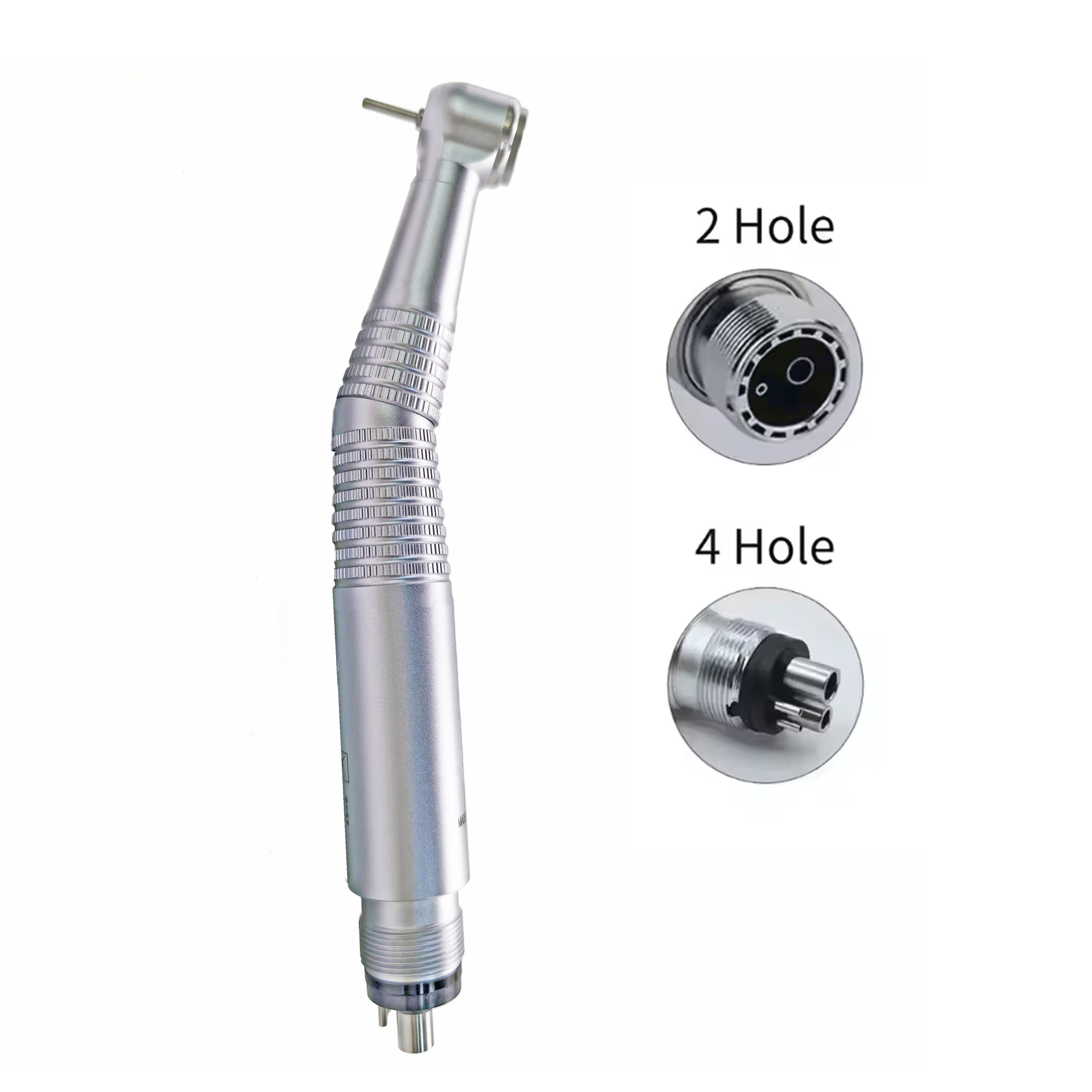

• Dual Connection Options: Available in 2-Hole and 4-Hole configurations to match virtually all major dental unit brands worldwide.

• • Product Display









Company Information

Foshan Kailun Technology Co., Ltd. is a professional supplier specialized in offering the one-stop service for dental equipments and dental material.Our main products range includes:High and low speed handpiece,dental ultrasonic scaler, Micro motor,dental unit,air compressor,dental implant motor,Obturation system,endodontic treatment,apex locator,led curing light,teeth whitening accelerator,x ray machine and sensor,dental lamp,obturation system,amalgamator and the dental tools and consumables.



1. What is your minimum order quantity (MOQ)?

Our standard MOQ is 1 piece for sample evaluation. For customized logos, the MOQ is 10–20 pieces depending on the product model. Custom packaging requires 500 pieces minimum. We support small trial orders so you can test our quality before committing to bulk purchases.

2. Can you put my clinic or distributor logo on the handpieces?

Yes. We offer OEM laser engraving for logos on handpiece bodies. Minimum order is 10–20 pieces (varies by model). Simply provide your logo file in AI, EPS, or high-resolution PNG format, and we will send you a mockup for approval before production.

3. What certifications do your handpieces have?

All AMBER handpieces are CE certified and compliant with EU Medical Device Regulation standards. If you require additional certifications for specific markets (e.g., FDA for the US, ANVISA for Brazil, COFEPRIS for Mexico), please contact us — we can discuss documentation support on a case-by-case basis.

4. How do you control product quality?

We implement a three-stage quality control process:

• Incoming inspection — All raw materials and components checked before assembly
• In-process inspection — Each handpiece undergoes RPM calibration, concentricity testing, water spray pattern verification, and fiber optic luminance testing
• Pre-shipment inspection — Random sampling per AQL standards with full functional testing

Every unit includes an individual QC serial number for full traceability.

5. What are your payment terms?

We accept:

• Trade Assurance (Alibaba.com secure payment — recommended)
• T/T (Telegraphic Transfer) — 30% deposit, 70% balance before shipment
• L/C (Letter of Credit) — available for orders above $10,000
• Western Union — for sample orders

6. How long does shipping take?

Shipping time depends on the destination and method:

Shipping Method	Estimated Transit Time
Express (DHL / FedEx / UPS)	3–7 business days
Air Freight	5–10 business days
Sea Freight	20–40 days

Production lead time is typically 3–7 business days for standard models and 10–15 business days for OEM/customized orders. We ship from Foshan, Guangdong, with major ports (Shenzhen, Guangzhou) within 1–2 hours.

7. Do you offer samples? How can I order one?

Yes, we encourage sample orders. Most standard models are available as single-unit samples at the listed price, shipped via DHL/FedEx. Sample shipping costs vary by destination.
