Technical Specifications
| Model | AM-Y025 |

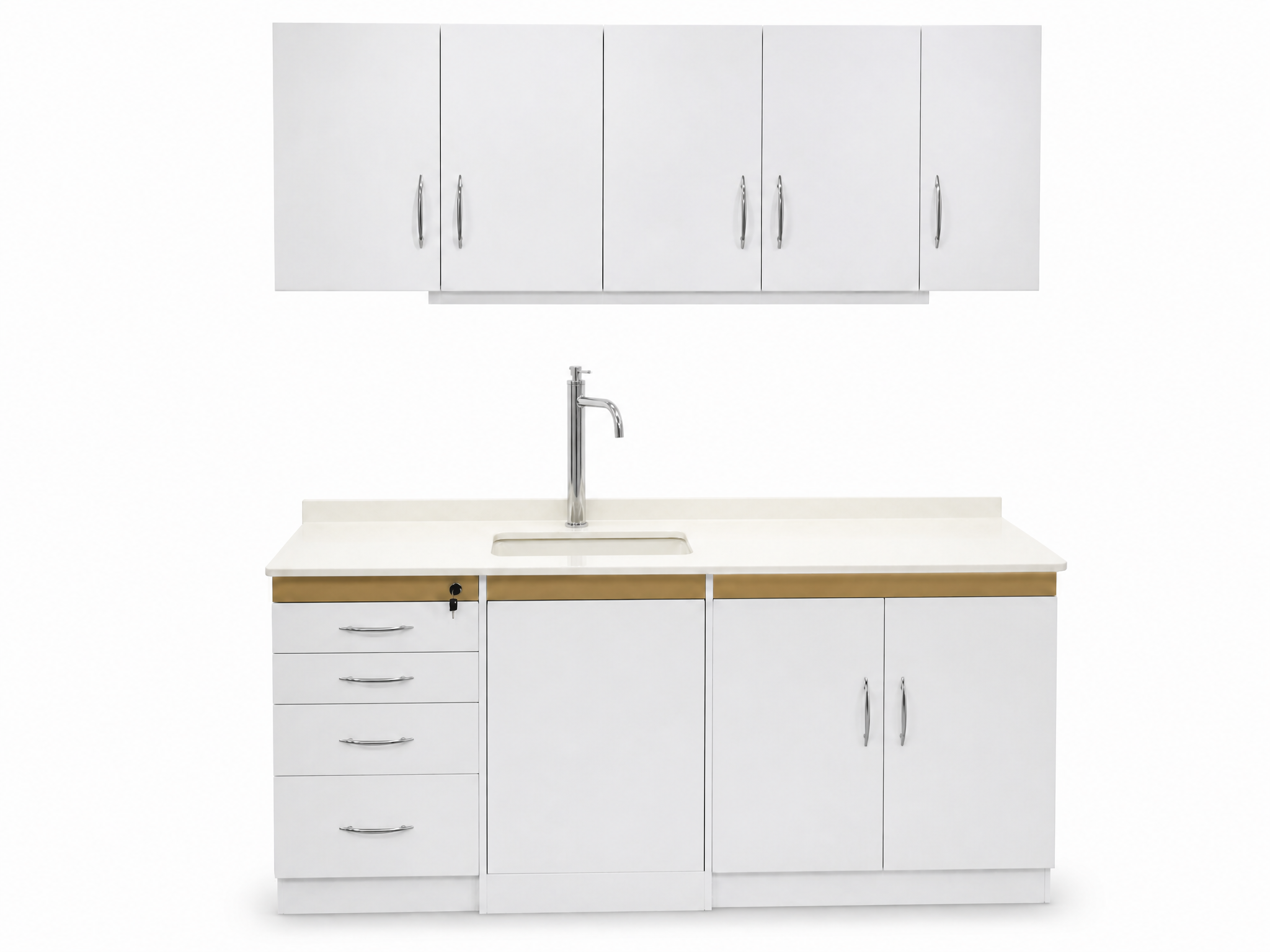

| Configuration Structure | Full Two-Tier Suite: Upper Wall Hanging Cabinets + Lower Base Cabinetry + Sink Station |
| Overall Length | 2.2 Meters (2200 mm) | Custom lengths available upon clinic blueprint |
| Countertop Material | Medical-grade artificial marble with integrated rear and side splash containment guards |
| Faucet & Washing System | Intelligent touchless infrared sensor faucet + seamless undermount clinic wash basin |
| Upper Hanging Cabinets | 5-door wall-mounted cabinet bank with integrated under-cabinet task illumination strip |
| Lower Base Cabinetry | Left 4-tier drawer bank (central key lock) + Center single-door plumbing cabinet + Right double-door bulk cabinet |
| Cabinet Materials & Finish | High-strength stainless steel & cold-rolled plates with electrostatic anti-corrosion, anti-fingerprint coating |
| Color Theme | High-gloss Clinical White with champagne gold horizontal trim accent (Custom RAL options supported) |
Key Functional Highlights
- Touchless Infection Control: The automated sensor water tap allows hands-free washing and disinfection, completely preventing cross-contamination from contaminated gloves.
- Integrated Countertop Task Lighting: Concealed LED illumination under the hanging wall cabinets delivers shadow-free lighting onto the marble preparation and washing zone.
- Durable Artificial Marble Surface: Non-porous stone countertop resists medical staining from dental bonding agents, etching acids, and harsh hospital surface disinfectants.
- Maximized Vertical Storage: The two-tier design pairs immediate chairside drawer access with spacious overhead wall storage for sterile cassettes and backup consumables.
Precision Manufacturing & Quality Standards
| Body Construction | 0.8mm – 1.0mm medical stainless steel sheet with electrostatic anti-corrosion coating |
| Hardware Quality | Imported silent soft-close drawer sliders; hydraulic damping door hinges |
| Hygienic Standards | Formaldehyde-free, odor-free, non-toxic coating safe for sterile clinic environments |
| Clinic Customization | Custom total length (e.g. 2.0m, 2.2m, 2.5m), sink position swap, custom cabinet door colors, project batch packaging |
Seaworthy International Packaging Specifications
- Modular Protection: Sectional export packaging with reinforced corner buffers, heavy-duty honeycomb carton, and thick EPE foam shock buffering for stone and glass modules.
- Palletization & Crating: Pre-assembled modular units are securely banded on solid fumigation-free wooden crates/pallets with waterproof barrier wrapping.
- Custom Shipping Marks: Support customized outer-carton markings, barcodes, clinic/distributor logos, and handling warning labels (Fragile / Keep Dry / This Side Up).
* For turnkey clinic construction or customized hospital tenders, full container load (FCL) modular packaging optimization and assembly schematics are provided prior to dispatch.
